At ELHO we understand the importance of efficient and reliable equipment in maximising your harvest yields. That's why we offer a range of high-quality machines designed to meet the diverse needs of farmers across the country.
Introducing the new ELHO V-Twin 950 Super Swather, an efficient forage production solution with an impressive working width of up to 9.5 meters! Designed to meet the increasing power of modern harvesters, the V-Twin 950S offers a hydraulically adjustable working width ranging from 4.5 to 9.5 meters.
Equipped with HydroBalance suspension, the V-Twin 950S smoothly follows the ground surface, ensuring optimal performance. Its double rotors lift and move the forage to the center, resulting in top-quality forage. The swath width can be easily optimized according to the harvester's requirements.
The standard V-Twin 950S model allows you to shift the swather to the right or left side of the tractor, ideal for navigating narrow spaces and avoiding driving on the swaths. Additionally, it offers the flexibility to use only one rotor for swathing.
Transporting the V-Twin 950S is convenient as it can be easily prepared for transport. Despite its impressive working width, the machine remains narrow and relatively low.
Swathing with a harvester reduces the number of kilometers driven, increases harvesting efficiency, and improves forage quality. ELHO swathers offer numerous benefits for forage producers and contractors alike.
Experience the efficiency and quality of ELHO's V-Twin 950 Super Swather. Explore our range of superior swathers for sale now!
| Working width, m | 4,5-9,5* |
| Swath width, m | 1,3-2,2 |
| Swath width adjustment, hydraulic | x |
| Swath width adjustment, mechanical | - |
| Side shift at the draw bar, m | 1,8 |
| Tine pattern | 6 |
| Rotor diameter, mm | 860 |
| Number of rake tines | 476 |
| Transport width, m | 2,4-3,2** |
| Transport height, m | 2,8 |
| Transport length, m | 7,8 |
| Tyre size | 500/50-17.5 |
| Weight, kg | 3500 |
| Hydraulic coupling, single action | 2 |
| Hydraulic coupling, double action | 1 |
| Hydraulic connection-free return | 1 |
| Number of hydraulic motors | 2 |
| Required oil flow, l/min | 35 |
| Hydraulic pressure, min/max bar | 175-210 |
| 3 point linkage | Cat.2 |
| Front linkage | - |
| Front loader connection, euro | - |
| Electrical connection ISO/TR 12369 | 12V/10 Amp |
* Depending on swath width
** Variable track width
X = Standard O = Option – = Not available
Introducing the ELHO V-Twin 750 Swather, delivering efficient and clean forage production with an impressive working width of up to 8 meters! Equipped with HydroBalance suspension, it follows the ground surface smoothly, while double rotors lift and move the forage to the center. The swath width can be optimized for your harvester's needs.
With a flexible working width of 3-8 meters, adjustable from the cab while driving, the V-Twin 750 is ideal for scattering and irregular sections. Regardless of the forage harvester's size, the rotors create a clean, regular, and fluffy swath that is easy to pick up, reducing the risk of clogging.
Swathing with a harvester enhances harvesting efficiency, reduces kilometers driven, and improves forage quality. Discover the numerous benefits ELHO swathers offer for forage producers and contractors!
| Working width, m | 3,0-8,0* |
| Swath width, m | 1,3-1,8 |
| Swath width adjustment, hydraulic | - |
| Swath width adjustment, mechanical | x |
| Side shift at the draw bar, m | - |
| Tine pattern | 7 |
| Rotor diameter, mm | 655 |
| Number of rake tines | 336 |
| Transport width, m | 2,6 |
| Transport height, m | 1,8 |
| Transport length, m | 6,9 |
| Tyre size | 300/80-18.3 |
| Weight, kg | 2170 |
| Hydraulic coupling, single action | 2 |
| Hydraulic coupling, double action | 1 (2) |
| Hydraulic connection-free return | 0 |
| Number of hydraulic motors | 2 |
| Required oil flow, l/min | 25 |
| Hydraulic pressure, min/max bar | 175-210 |
| 3 point linkage | Cat.2 |
| Front linkage | - |
| Front loader connection, euro | - |
| Electrical connection ISO/TR 12369 | - |
* Depending on swath width
** Variable track width
X = Standard O = Option – = Not available
Introducing the ELHO V-Twin 600, a cost-effective front-mounted swather designed to optimize the capacity of your rear-mounted harvester. Swathing all types of forage cleanly and efficiently, the V-Twin 600 allows for optimal drying before harvesting. Simultaneous swathing and harvesting save time, fuel, and reduce field driving. Increase efficiency and ensure top-quality forage with the recommended combination of the ELHO V-Twin 600 and compatible rear attachments such as balers, baler-wrappers, or self-loading trailers. Discover the benefits today!
The V-Twin 600 is very flexible – it can be used at the front or back!
| Working width, m | 6 |
| Swath width, m | 1,2-1,3 |
| Swath width adjustment, hydraulic | - |
| Swath width adjustment, mechanical | x |
| Side shift at the draw bar, m | - |
| Tine pattern | 6 |
| Rotor diameter, mm | 655 |
| Number of rake tines | 240 |
| Transport width, m | 2,4 |
| Transport height, m | 3,4 |
| Transport length, m | 2,1 |
| Tyre size | 18X8.5-8 |
| Weight, kg | 860 |
| Hydraulic coupling, single action | 2 |
| Hydraulic coupling, double action | 1 |
| Hydraulic connection-free return | 1 |
| Number of hydraulic motors | 2 |
| Required oil flow, l/min | 25 |
| Hydraulic pressure, min/max bar | 175-210 |
| 3 point linkage | Cat.2 |
| Front linkage | Cat.2 |
| Front loader connection, euro | 0 |
| Electrical connection ISO/TR 12369 | - |
* Depending on swath width
** Variable track width
X = Standard O = Option – = Not available
Introducing the ELHO Twin 4600, a front-mounted swather with an angled rotor designed to significantly increase productivity. With the ability to lift and move forage or straw without driving over it, the Twin 4600 offers all the advantages of ELHO Twin models.
By using a swather, field driving is reduced by half, resulting in faster, more efficient forage harvesting and lower fuel costs when combined with a harvester/baler. The Twin 4600 is also perfect for turning and combining straw swaths, effectively combining two or three swaths when used as a "regular" swather.
With its fully hydraulic-driven system requiring only 25 l/min of oil flow, the Twin 4600 is highly efficient. It can be easily mounted to a front linkage or a front loader (Euro II) using the standard configuration.
Experience the accelerated forage harvesting with the ELHO Twin 4600 swather. Maximize productivity and efficiency on your farm today!
| Working width, m | 4,1 |
| Swath width adjustment, mechanical | x |
| Tine pattern | 6 |
| Rotor diameter, mm | 655 |
| Number of rake tines | 138 |
| Transport width, m | 3 |
| Transport height, m | 1,6 |
| Transport length, m | 2,3 |
| Tyre size | 18X8,5-8 |
| Weight, kg | 540 |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
| Number of hydraulic motors | 2 |
| Required oil flow, l/min | 25 |
| Hydraulic pressure, min/max bar | 175-210 |
| 3 point linkage | Cat.2 |
| Front linkage | Cat.2 |
| Front loader connection, euro | x |
X = Standard O = Option – = Not available
Introducing the ELHO TR 300 Tedder, designed to produce quick-drying, high-quality forage. With its versatile capabilities including making, turning, spreading, and moving swaths, the TR 300 is a reliable choice.
Featuring a large-diameter rotor and double tines secured with lock plates, the TR tedder ensures that broken tines will not interfere with the harvester's rotor. The result is a fluffy and clean swath that dries rapidly, making it ideal for swathing, turning, moving, and spreading silage, dry hay, and straw.
For added precision and ease, TR tedders can be equipped with an optional SideFlow conveyor. This feature enables extremely accurate tedding and combining of swaths, thanks to its self-centering mat and exceptional throwing power.
With over 15,000 satisfied customers, the ELHO TR tedders have established a strong reputation in the world of forage harvesting. Join the ranks of happy customers and experience the reliability and performance of ELHO TR tedders today!
| Working width, m | 2,8 |
| Swath width adjustment, mechanical | x |
| Tine pattern | 6 |
| Rotor diameter, mm | 1000 |
| Number of rake tines | 96 |
| Transport width, m | 3 |
| Transport height, m | 1,6 |
| Transport length, m | 2,2 |
| Tyre size | 18X8.5-8 |
| Weight, kg | 780 |
| 3 point linkage | Cat.2 |
X = Standard O = Option – = Not available
Top quality forage and the best overall economic efficiency with the reliable ELHO SiloMatic 1010 trailed bale wrapper!
The SiloMatic 1010 Trailed Bale Wrapper is a top-of-the-line bale wrapper designed to provide you with top-quality forage and the best overall economic efficiency for your farm.
The ELHO SiloMatic 1010 comes with a solid frame, a turntable, and a powerful loading fork, enabling you to transport one bale while wrapping another simultaneously. The cleverly asymmetric positioning of the turntable ensures the machine remains stable during operation, increasing your productivity and convenience.
Equipped with two large synchronised support rollers, the SiloMatic 1010 ensures smooth and consistent wrapping of bales. The standard bogie's large and wide tires minimise soil compaction, making it suitable for use even in wet fields. Additionally, the partly built-in loading fork enhances stability during the loading process.
With a rich history of decades of reliable performance, the ELHO SiloMatic 1010 bale wrapper has proven to be a trusted and essential tool for farmers worldwide.
At ELHO, we pride ourselves on delivering high-quality and innovative agricultural equipment to meet your needs. The SiloMatic 1010 represents our commitment to providing efficient and reliable solutions for forage preservation on your farm.
Contact Us Today and Experience the ELHO Difference! Let our knowledgeable team assist you in finding the perfect agricultural equipment solutions for your farm.
| Control | Kaapeli |
| Number of pre-stretchers, 750 mm | 1 |
| Recommended bale diameter, m | 1,2-1,5 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1250 |
| Max wrapping speed, RPM | 20 |
| Tyre size | 26x12.00-12 |
| Light kit | x |
| Weight, kg | 1150 |
| Length, m | 3,5 |
| Width, m | 2.35 |
| Height, m | 2,7 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 45/15 |
| Electrical connection ISO/TR 12369 | 12V/10 Amp |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
The ELHO Sideliner 1540 M bale wrapper produces tidy bales efficiently!
The ELHO Sideliner 1540 M bale wrapper features a low wrapping table for loading and wrapping and offloading while retaining a suitable unloading height for allowing the bale to rotate. These robust machines have been popular for decades.
The loading fork automatically lifts the bale to the centre of the wrapping table, so the weight is evenly distributed on both the wheels and the tractor. The sturdy wrapping table is equipped with three chain-driven support rollers and is mounted directly to the frame. Four end-support rolls keep the bale in place at its sides. The sturdy drop mat reduces the risk of damage to wrapped bales, especially on rough ground.
The Sideliner 1540 M comes standard with a single wrapping arm. This is a cable-controlled bale wrapper equipped with a revolution and bale counter.
Optional equipment for the Sideliner 1540 M includes a bale turning ramp and a second wrapping arm that makes it even faster.
ELHO has manufactured thousands of Sideliner bale wrappers, and the success story continues!
Contact us now to learn more about the ELHO Sideliner 1540 M Bale Wrapper and how it can optimise your baling operations.
ELHO Sideliner 1540
| Control | Kaapeli |
| Number of pre-stretchers, 750 mm | 1 |
| Recommended bale diameter, m | 1-1,5 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1200 |
| Max wrapping speed, RPM | 35 |
| Tyre size | 26x12.00-12 |
| Light kit | x |
| Weight, kg | 1320 |
| Length, m | 4,2 |
| Width, m | 2,5 |
| Height, m | 2,7 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 50/20 |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
The ELHO Sideliner 1540 Pro is an efficient automatic wrapper for round bales!
The ELHO Sideliner 1540 Pro bale wrapper features a low wrapping table for loading and wrapping and offloading while retaining a suitable unloading height for allowing the bale to rotate. These robust machines have been popular for decades.
The loading fork automatically lifts the bale to the centre of the wrapping table, so the weight is evenly distributed on both the wheels and the tractor. The sturdy wrapping table is equipped with three chain-driven support rollers and is mounted directly to the frame. Four end-support rolls keep the bale in place at its sides. The sturdy drop mat reduces the risk of damage to wrapped bales, especially on rough ground.
The Sideliner 1540 Pro comes standard with a single wrapping arm. Hydraulic synchronising in the automatic Sideliner 1540 Pro model ensures that the overlapping mechanism stays even and film is applied tightly around the bale, ensuring top-quality forage. The Sideliner 1540 Pro loads and wraps automatically and can also drop the bales automatically.
Optional equipment for the Sideliner 1540 Pro includes a bale turning ramp and a second wrapping arm that makes it even faster.
ELHO has manufactured thousands of Sideliner bale wrappers, and the success story continues!
ELHO Sideliner 1540 Pro
| Control | Monitori |
| Number of pre-stretchers, 750 mm | 1 |
| Recommended bale diameter, m | 1-1,5 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1200 |
| Max wrapping speed, RPM | 45 |
| Tyre size | 26x12.00-12 |
| Light kit | x |
| Weight, kg | 1350 |
| Length, m | 4,2 |
| Width, m | 2.5 |
| Height, m | 2,8 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 50/20 |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
The ELHO Sideliner 1790 Pro is an automatic wrapper for large diameter round bales!
The ELHO Sideliner 1790 Pro is your automatic wrapper for large diameter round bales! This versatile machine easily wraps bales up to 1.8 meters in diameter, with an impressive loading capacity of 1600 kilos.
Equipped with strong loading arms, the Sideliner 1790 Pro automatically aligns the bale to the center of the wrap table for efficient wrapping. The satellite wrap arms feature dual 750mm plastic pre-stretchers and film break sensors, ensuring reliable wrapping results.
For smooth and convenient handling, the hydraulic control of the tow bar comes standard. Additional features include a light kit and mudguards, keeping the wrapper clean even during long transfer journeys.
To further enhance convenience, the Sideliner 1790 Pro can be equipped with a bale turning ramp and a drop mat, making the collection of wrapped bales a breeze.
Experience the efficiency and versatility of the ELHO Sideliner 1790 Pro and optimise your large diameter round bale wrapping process and get in contact today!
Elho Sideliner 1790 Pro:
| Control | Monitori |
| Number of pre-stretchers, 750 mm | 2 |
| Recommended bale diameter, m | 1-1,8 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1600 |
| Max wrapping speed, RPM | 45 |
| Tyre size | 380/55-17 |
| Light kit | x |
| Weight, kg | 1480 |
| Length, m | 4,5 |
| Width, m | 2.85 |
| Height, m | 2,8-3,05 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 50/20 |
| Electrical connection ISO/TR 12372 | 12V/10 Amp |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
Wrap over 60 bales an hour with the ELHO Proliner 1200!
Experience unparalleled efficiency with the ELHO Proliner 1200, wrapping over 60 bales an hour! This automatic bale wrapper handles the entire process, from loading to offloading.
Utilising the ELHO Opus control system, achieve high-speed wrapping, exceeding 60 bales per hour (subject to bale availability). Equipped with two 500mm plastic pre-stretchers and film break sensors.
The robust load arm centers bales on the wrapping table, while two rollers ensure smooth rotation. Two support rollers provide lateral support. The hydraulic system, featuring a valve block compatible with LS hydraulic systems, ensures seamless operation.
For faster bale collection, opt for the bale turning ramp. Contact us and elevate your wrapping productivity with the ELHO Proliner 1200 today!
ELHO Proliner 1200:
| Control | Automatic |
| Number of pre-stretchers, 750 mm | 2 |
| Recommended bale diameter, m | 1,0-1,1 |
| Recommended bale width, m | 1,0 |
| Max bale weight, kg | 800 |
| LS hydraulics readiness | x |
| Max wrapping speed, RPM | 50 |
| Weight, kg | 850 |
| Length, m | 2,3/3,25 |
| Width, m | 1,75 |
| Height, m | 2,18 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 50/20 |
| Electrical connection ISO/TR 12372 | 12V/10 Amp |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
Experience speed and precision with the ELHO Proliner 1500!
This robust 3-point mounted round bale wrapper effortlessly wraps six layers of plastic around a 1.2-meter bale in just 30 seconds, ensuring efficient loading to offloading.
Operated and transported behind your tractor, the Proliner 1500 boasts a fully automatic wrap cycle. Thanks to the user-friendly ELHO Opus control system, achieve high-speed wrapping, exceeding 60 bales per hour (depending on bale availability). Equipped with two 750mm plastic pre-stretchers and film break sensors.
The robust load arm centres bales on the wrapping table, while three synchronised rollers ensure seamless rotation. Four support rollers provide lateral stability. The hydraulic system's valve block, compatible with LS hydraulic systems, ensures optimal functionality.
For even faster bale collection, opt for the bale turning ramp. Discover the ELHO Proliner 1500 – a robust and efficient mounted bale wrapper.
Ready to elevate your wrapping efficiency? Contact us now to learn more about the ELHO Proliner 1500 and how it can enhance your bale wrapping process. Our experts are here to assist you!
ELHO Proliner 1500
| Control | Automatic |
| Number of pre-stretchers, 750 mm | 2 |
| Recommended bale diameter, m | 1,2-1,4 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1000 |
| LS hydraulics readiness | x |
| Max wrapping speed, RPM | 50 |
| Weight, kg | 1150 |
| Length, m | 2,7/3,53 |
| Width, m | 2,05 |
| Height, m | 2,44 |
| Oil pressure, bar | 180-200 |
| Hydraulic flow max/min l/min | 50/20 |
| Electrical connection ISO/TR 12372 | 12V/10 Amp |
| Hydraulic coupling, single action | 1 |
| Hydraulic connection-free return | 1 |
X = Standard O = Option – = Not available
The ELHO Tube 2040 ACI is a versatile and safe tube wrapper!
Discover the ELHO Tube 2040 ACI – your versatile and safe tube wrapper since 1993! This durable machine ensures optimal bale angle upon wrapping, backed by a robust structure.
Featuring a dedicated hydraulic system with three pumps, it offers smooth film overlapping, automatic film monitoring, and an option for extra film layers at the bale seam. With quick malfunction detection via sensors, expenses are minimised, and productivity is maximised. The Tube 2040 ACI's large standard tires simplify work, even in wet fields.
Fully automatic, it starts wrapping when a bale is loaded or via remote control from the tractor's cab. Capable of up to 120 round bales per hour (unrestricted by availability), it suits both large round and square bales – up to four square bales at once, based on size.
Economical and eco-conscious, the Tube 2040 ACI reduces plastic film use by over 50%, resulting in significant savings. Embrace efficiency with ELHO Tube 2040 ACI!
The ELHO Tube 2040 ACI is so fast, it soon pays for itself!
| Control | Monitori |
| Lombardini 16hp, diesel, electrical start | x |
| Recommended bale diameter, m | 1,2-1,6 |
| Recommended bale width, m | 1,2 |
| Max bale weight, kg | 1400 |
| Square bale, max kg/m | 850 |
| Square bale max height-width, m | 1,6-1,4 |
| Feed stroke, m | 1,6 |
| Front axis steering hydraulic | x |
| Number of pre-stretchers, 750 mm | 2 |
| Tyre size | 360/65-16 |
| Light kit | x |
| Weight, kg | 2850 |
| Length, m | 5,6/6,5 |
| Width, m | 3,15 |
| Height, m | 2,85 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option – = Not available
Your versatile, functional, and budget-friendly double chopper for efficient forage harvesting.
Mounted on the side, the DC 2100 S boasts a powerful design with a spacious chopper rotor and auger conveyor. Its solid frame ensures durability, maintaining precise knife area ratios with minimal bending over time.
Efficiently picking forage from a swath, the auger conveyor feeds it steadily into the chopper. The curved chamber and adjustable front plate enable operation with wet forage. Standard with eight chopping knives, the DC 2100 S offers flexibility, allowing the use of two or four knives for longer chaff. The knife design prevents suction and keeps forage clean.
Facilitating ease of use, the lateral shift of the towing hook and electric control of the chute's height and oscillation simplify trailer filling. In smaller fields, the ELHO DC 2100 serves as an efficient mower conditioner replacement.
Ready to enhance your forage harvesting? Learn more about the ELHO DC 2100 S Double Chopper and how it can optimise your operations. Our experts are here to assist you!
Contact Us Today!
ELHO DC 2100:
| Tractor power requirment, min/max, kW* | 70-110 |
| Working width, m | 2,1 |
| Number of knives on rotor | 48 |
| Number of cutting knives | 8 |
| Tyre size | 26x12.00-12 |
| Rotor speed, RPM | 2000 |
| Cutter speed, RPM | 1080 |
| Weight, kg | 1000 |
| Power transmission, RPM | 540 |
| Transport width, m | 2,8 |
| Transport height, m | 2,19 |
| Transport length, m | 2,2 |
| Width, m | 3 |
| Height, m | 3 |
*) The tractor weight and power is determined based on the conditions
Cobra precision chopper combines innovation, durability, high capacity and ease of use!
ELHO Cobra Precision Chopper combines a blend of innovation, durability, high capacity, and user-friendliness!
Crafted to streamline forage production, the Cobra ensures both cost-effectiveness and mechanical efficiency. Opting for a tractor-driven harvester presents an economical alternative, maximising your farm's engine utility.
Automatic features include:
- Immediate response to foreign objects, halting feeder rollers
- Overload alert for efficient operation
- Automatic pickup lift during blockages
- Easy knife sharpening and counter knife adjustment via in-cab controls
- Automated silage additive dosing
The Cobra's pickup employs proven rotor tedder technology, elevating forage to dual feeder augers that ensure secure, continuous transport towards compression rollers.
Hydraulically-driven compression rollers gauge load levels, alerting drivers as capacity approaches maximum. Blockages won't harm the powertrain or structure. Safely clear blockages by reversing feeder rollers from the cab, even at full speed.
Experience innovation with ELHO Cobra Precision Chopper - redefining efficiency in forage production!
| Tractor power requirement, Hp | 250-400 |
| Nominal pump capacity min, l/min | 160 |
| Pickup width, m | 3 |
| Chopper rotor diameter, mm | 770 |
| Chopper rotor width, mm | 1000 |
| Knives | 2x16 |
| Sensor for hard objects | x |
| Sharpening device | x |
| Counter knife control | Sähkö |
| Chute rotation | Hydraulinen |
| Spout height | Hydraulinen |
| Chute height, m | 5,8 |
| Wheel axle 1 | Teleskooppinen |
| Wheel axle 2 | - |
| Wheel axle 3 | - |
Finally, a front mower conditioner delivering all the advantages of a trailed mower conditioner, and more!
Experience power, exceptional handling, HydroBalance suspension, and the Pendulum Centre System (PCS). Its frame allows the cutter bar to gracefully follow field contours, avoiding obstacles effortlessly – a mower conditioner at its finest!
Enhance performance further with the optional HydroBalance top link, providing controlled movement. ELHO front mower conditioners amplify cutting power when paired with trailed mowers and mower conditioners. For instance, combining an NM 3200 F with an NM 9000 Delta ensures efficient coverage, even in extensive fields.
Unleash the potential of your forage operations with ELHO NM 3200 F!
ELHO NM 3200 F:
| Tractor power requirment, min/max, kW* | 60-90 |
| Minimum recommended tractor weight, kg* | 5000 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 1,2-1,8 |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Weight, kg | 1100 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1 |
| Hydraulic pressure, min/max bar | 140-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
World’s widest front mower conditioner
With an impressive 3.7-meter cutting width, this model redefines productivity. It excels even at high speeds and in dense growth.
Featuring the Pendulum Center System (PCS), the mower conditioner moves freely, while HydroBalance ensures it delicately follows the field surface. This not only prevents contaminants from entering the forage but also reduces fuel consumption.
Pairing the NM 3700 F front mower conditioner with an NM 10500 butterfly mower conditioner creates an exceptionally productive duo. Smart automation and GPS assistance simplify operation, making your job effortless.
Ready to elevate your forage efficiency? Contact us now to learn more about the ELHO NM 3700 F and how it can enhance your mowing and conditioning operations. Our experts are here to assist you!
ELHO NM 3200 F:
| Tractor power requirment, min/max, kW* | 70-100 |
| Minimum recommended tractor weight, kg* | 6000 |
| Working width, m | 3,7 |
| Number of discs | 9 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 1,2-1,8 |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3,5 |
| Weight, kg | 1250 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1 |
| Hydraulic pressure, min/max bar | 150-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3N |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Impressive flow through the unit with high driving speeds plus fast drying results!
Experience the exceptional flow and rapid drying with the ELHO NM 2400 VC (Vertical Centre) mower conditioner!
Packed with essential ELHO features, its center-suspended cutting unit seamlessly tracks the field surface, while the robust cutter bar guarantees a pristine cut. The conditioning rotor, complete with freely swinging fingers, adjustable counter bar, and an extended conditioning chamber, ensures optimal drying. HydroBalance suspension maintains forage cleanliness.
With compatibility for a 75-horsepower tractor weighing 3500 kilos, the NM 2400 VC proves versatile. In transport mode, its center of gravity aligns with the tractor's centerline, enhancing stability and convenience.
Discover ELHO NM 2400 VC for unmatched mowing and conditioning efficiency!
Ready to optimise your mowing and conditioning operations? Contact us now to learn more about the ELHO NM 2400 VC and how it can elevate your forage productivity. Our experts are here to assist you!
ELHO NM 2400 VC:
| Tractor power requirment, min/max, kW* | 50-80 |
| Minimum recommended tractor weight, kg* | 3500 |
| Working width, m | 2,4 |
| Number of discs | 6 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 1750 |
| Rotor speed, RPM | 800/630 |
| Swath width, m | 0,6-1,4 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Weight, kg | 970 |
| PTO speed, 1000 RPM | 0 |
| PTO speed, 540 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat. 2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Impressive flow and high driving speeds, even with smaller tractors!
The ELHO 2800 VC (Vertical Centre) mower conditioner is renowned for its impressive flow, swift operation, and pristine forage results. Adjustable skid shoes and HydroBalance suspension ensure the cutter bar closely tracks the field surface without touching the ground. The conditioning rotor, with its freely swinging, rounded fingers, delicately treats forage plants. Combine this with the adjustable counter bar and extended conditioning chamber for excellent drying. Side mower conditioners are perfect for use with smaller farm tractors.
Side mower conditioners offer precise forage harvesting. When working with butterfly units, you can leave unmown areas between the mower conditioner and the front machine during sharp turns. By pairing a front mower conditioner with a side unit, you can achieve the sharpest turns without leaving any unmown areas behind.
Unlock precision and efficiency with ELHO 2800 VC mower conditioners!
Ready to maximise your forage harvesting precision? Contact us now to explore the ELHO 2800 VC mower conditioner and enhance your operations with ELHO quality. Our experts are here to assist you!
ELHO NM 2800 VC:
| Tractor power requirment, min/max, kW* | 60-90 |
| Minimum recommended tractor weight, kg* | 4000 |
| Working width, m | 2,8 |
| Number of discs | 7 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2150 |
| Rotor speed, RPM | 920 |
| Swath width, m | 0,9-1,8 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Weight, kg | 1050 |
| PTO speed, 1000 RPM | x |
| PTO speed, 540 RPM | 0 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat. 2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Experience excellence with the ELHO NM 3200 VC (Vertical Centre) side mower conditioner!
This spacious side mower conditioner is packed with essential ELHO features. Its center-suspended cutting unit effortlessly adapts to the field's contours, guaranteeing a precise cut with the dependable cutter bar. The conditioning rotor, equipped with freely swinging fingers, an adjustable counter bar, and an extended conditioning chamber, ensures optimal drying. HydroBalance suspension further enhances forage cleanliness.
The ELHO NM 3200 VC allows quick headland turns: tractor lift arms remain in position while the cutting unit is lifted using its dedicated lift cylinder. Consistency is key across all ELHO mower conditioners and mowers, delivering smooth, secure, and durable cutting performance.
Discover the ELHO NM 3200 VC for unparalleled mowing and conditioning!
Ready to elevate your mowing and conditioning efficiency? Contact us now to explore the ELHO NM 3200 VC mower conditioner and unlock precision in your forage operations. Our experts are here to assist you!
ELHO NM 3200 VC:
| Tractor power requirment, min/max, kW* | 70-100 |
| Minimum recommended tractor weight, kg* | 4500 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor speed, RPM | 920 |
| Swath width, m | 1,3-2,1 |
| Merged swath width, m | - |
| Spreading | - |
| Auger conveyor | - |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Height in transport mode, m | 3,5 |
| Weight, kg | 1150 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3N |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Experience versatility with the ELHO NM 3200 SF (SideFlow) side mower conditioner, packed with impressive features!
This adaptable mower conditioner is designed to meet diverse needs. It comes equipped with a standard light kit, counterweight, and the reliable SideFlow auger conveyor. SideFlow also facilitates spreading when you open the rear hatch of the screw conveyor.
The NM 3200 SF offers a wide range of mowing techniques. Driving up and down the field creates paired swaths, while circling the field results in evenly spaced swaths. For swath grouping, combine the hay cut by four cutter bars into one swath, allowing a six-meter swather to collect forage from a 12-meter width. When using a combination of front and side mower conditioners, counterclockwise driving along the field's edges ensures complete coverage, even in tight curves.
The NM 3200 SF side mower conditioner pairs perfectly with a front mower conditioner for enhanced efficiency.
Unlock versatility with the ELHO NM 3200 SF!
Contact Us Today!
ELHO NM 3200 SF
| Tractor power requirment, min/max, kW* | 120-160 *** |
| Minimum recommended tractor weight, kg* | 6500 * |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 2,5 ** |
| Merged swath width, m | 1,4-2,3 |
| Spreading | x |
| Auger conveyor | x |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 2,5 |
| Weight, kg | 2150 **** |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Proven Solutions for Effortless Operation!
Discover the ELHO NM 3200 C (Centre) trailed mower conditioner, equipped with adjustable auxiliary skid shoes and versatile headland lifting. Its end-cushioned boom cylinder facilitates mowing on both sides of your tractor.
With ELHO's standard HydroBalance suspension, the cutter bar glides smoothly, preventing ground scraping and unnecessary friction. Opt for hydraulic adjustable cutting height to tweak it while on the move. The NM3200 Central models feature an operator-friendly bevel gear, enabling compatibility with 540 rpm PTO tractors alongside 1000 rpm ones.
Contact Us Today!
ELHO NM 3200:
| Tractor power requirment, min/max, kW* | 60-90 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 900/1100 |
| Swath width, m | 1,3-2,5 |
| Merged swath width, m | 1,4-2,3 |
| Spreading | x |
| HydroBalance suspension | x |
| Spring suspension | x |
| Transport width, m | 3,1 |
| Tyre size | 380/55-17 |
| Weight, kg | 2100 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| PTO speed, 540 RPM | x |
| Hydraulic coupling, single action | 1+1 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Experience Unmatched Ease, Agility, and Power Even with Medium-Size Tractors!
ELHO NM 3700 C Trailed Mower Conditioner Delivers Clean Forage in All Conditions.
The ELHO NM 3700 C (Centre) trailed mower conditioner is designed for ease and comfort, even when paired with a medium-size tractor. This versatile machine consistently produces clean forage, regardless of the plant type or field conditions.
Our standard HydroBalance suspension, developed by ELHO, ensures the cutter bar remains elevated, preventing ground scraping and minimizing unnecessary friction. You can conveniently adjust the cutting height hydraulically while driving, thanks to the optional hydraulic stubble adjustment feature. Plus, for those soft ground situations, the NM 3700 C offers optional 480 mm wide tires.
Experience unmatched performance and efficiency with ELHO NM 3700 C. Make clean forage a standard on your farm today!
Contact Us Today!
ELHO NM 3700 C:
| Tractor power requirment, min/max, kW* | 70-100 |
| Working width, m | 3,7 |
| Number of discs | 9 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 900/1100 |
| Swath width, m | 1,3-2,5 |
| Spreading | x |
| HydroBalance suspension | x |
| Spring suspension | x |
| Transport width, m | 3,5 |
| Tyre size | 380/55-17 |
| Optional tyre size | 480/55-17 |
| Weight, kg | 2300 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1+1 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Unsurpassed ergonomics for owners of a reverse-drive tractor!

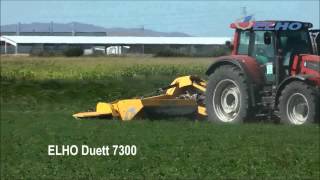

The ELHO Duett 7300 is the ideal mower conditioner for large fields and is designed for use with reverse-drive tractors only. Operating in reverse provides an unobstructed view to the mower conditioner and agile steering thanks to the swivelling rear wheels.
The 7.3-metre Duett is also extremely efficient. If there are obstacles in the field or the individual fields are small, the Duett is often more efficient than a butterfly mower conditioner with a wider cutting width. The cutting unit comprises two 3.7-metre cutter bars that automatically engage when the units are lowered.
The Duett does not leave unmown areas even in tight bends. The cutting units feature HydroBalance suspension that lightly follows the field surface, forming high, quick-drying swaths on both sides of the tractor. The swaths are also very suitable for round balers. HydroBalance allows the driving speed to be kept high while still producing clean forage. The transfer from transport mode to the working position and vice versa is quick, as simply raising or lowering the wings is sufficient.
ELHO Duett 7300:
| Tractor power requirment, min/max, kW* | 140-180 |
| Working width, m | 7,3 |
| Number of discs | 18 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2x2150 |
| Rotor speed, RPM | 920 |
| Swath width, m | 2x1,3-1,7 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,8 |
| Height in transport mode, m | 4 |
| Weight, kg | 2700 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, single action | 3 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 180-210 |
| PTO connection 1 3/4"-Z20 | x |
| 3 point linkage | Cat.3 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
The ELHO NM 9000 butterfly mower conditioner is powerful and reliable!
The ELHO NM 9000 butterfly mower conditioner does not require a large tractor – a medium size tractor is sufficient. The NM 9000 is the ideal mower conditioner for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection.
The steel finger conditioner and adjustable counter bar facilitate quick drying. The machine is operated with the tractor’s own control system.
ELHO NM 9000:
| Tractor power requirment, min/max, kW* | 150-180 |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9 |
| Number of discs | 16 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2x2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 2x1,3-2,1 ** |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 3,7 |
| Weight, kg | 2500 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, single action | 2 |
| Hydraulic pressure, min/max bar | 140-210 |
| PTO connection 1 3/4"-Z20 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
A butterfly mower conditioner that does not require a large tractor!
The ELHO NM 9000 SF (SideFlow) butterfly mower conditioner is ideal for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection. The steel finger conditioner and adjustable counter bar facilitate quick drying.
The NM 9000 is available with or without the SideFlow swath combiner. Automatic overload protection opens the rear hatch if a large object enters the machine or if a blockage is forming. In transport mode, the centre of gravity is over the tractor’s centreline, so even smaller tractor remain stable.
ELHO NM 9000 SF:
| Tractor power requirment, min/max, kW* | 160-200 |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9 |
| Number of discs | 16 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2x2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 2x2,5 ** |
| Merged swath width, m | 1,4-2,3 |
| Spreading | x |
| Auger conveyor | x |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 3,7 |
| Weight, kg | 3150 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, single action | 2 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/4"-Z20 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
The wide ELHO Arrow NM 10500 butterfly mower conditioner can cover large areas with unrivalled ease of use!
The ELHO NM 10500 butterfly mower conditioner features an adjustable working width from 9.4 to 10.5 metres. The NM 10500 Delta mower conditioner together with an NM 3700 F mower conditioner is an unbeatable combination.
When covering large areas, mowing must be easy, accurate and efficient. The driver should only focus on driving, rather than on pulling levers and pushing buttons. ELHO has the perfect solution!
The ELHO Opus control system is extremely easy to use and adjust according to your own preferences. Automatic Curve Compensation (ACC) uses the machine’s own GPS system to adjust the overlap of the cutter bars in curves to prevent any unmown areas between the front and rear units. The same GPS system is used for the Headland Automatics (HA), which raises the rear mower conditioners automatically at the exact same spot where the front units were raised.
The NM 10500 Delta also has automatic AutoBalance suspension, which adjusts the suspension automatically according to the mowing conditions, as well as HydroActive impact protection.
The ELHO Opus control system also monitors the temperature of critical components and triggers an alert if the temperature of components starts rising. All functions can be controlled from an easy-to-use screen inside the cab.
For contractors and larger farms that need more mowing power, the ELHO NM 10500 Delta butterfly mower conditioner is the perfect choice!
ELHO NM 10500:
| Tractor power requirment, min/max, kW* | 180-240 ***) |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9,4-10,5 |
| Number of discs | 18 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2x2150 |
| Rotor speed, RPM | 900/1100 |
| Swath width, m | 2x1,3-1,7 |
| Merged swath width, m | 1,4-2,3 |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 4 |
| Weight, kg | 3400 |
| PTO speed, 1000 RPM | x |
| P,T,LS | |
| Hydraulic pressure, min/max bar | 180-210 |
| PTO connection 1 3/4"-Z20 | x |
| 3 point linkage | Cat.3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Widest butterfly mower conditioner on the market and packed with advanced features!
The ELHO NM 10500 SF (SideFlow) butterfly mower conditioner features an adjustable working width from 9.4 to 10.5 metres, enabling it to be used together with front mounted mower conditioners of different sizes. Each side can be adjusted individually either manually or automatically. AutoBalance suspension maintains the optimal position at all times, also in curves.
Automatic Curve Compensation (ACC) uses the machine’s own GPS system to adjust the overlap of the cutter bars in curves to prevent any unmown areas between the front and rear units. The same GPS system is used for the Headland Automatics (HA), which raises the rear mower conditioners automatically at the exact same spot where the front units were raised. In this way, the operator can focus on the front unit alone. The HydroActive hydraulic release device provides impact protection in case of obstacles.
The SideFlow auger conveyor is ideal for harvesting forage plants with stalks. For the ultimate cutting power and highest possible comfort levels, the NM 10500 is the right choice!
ELHO NM 10500:
| Tractor power requirment, min/max, kW* | 190-290 ***) |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9,4-10,5 |
| Number of discs | 18 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2x2150 |
| Rotor speed, RPM | 900/1100 |
| Swath width, m | 2x2,2 **) |
| Merged swath width, m | 1,6-2,5 |
| Auger conveyor | x |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 4 |
| Weight, kg | 4080 |
| PTO speed, 1000 RPM | x |
| P,T,LS | |
| Hydraulic pressure, min/max bar | 180-210 |
| PTO connection 1 3/4"-Z20 | x |
| 3 point linkage | Cat.3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Impressive flow with high driving speeds, also with smaller tractors!
The ELHO 2400 disc mower is known for its impressive flow, high driving speeds and clean forage. The optionable adjustable skid shoes enable the cutter bar to follow the field surface precisely without hitting the ground.
Side disc mowers are ideal for use also with smaller tractors on the farm. For example, the NK 2400 can be used with a relatively light 40-horsepower tractor. In addition to agricultural tasks, these models are also suitable for maintaining landscapes and mowing roadsides.
Side disc mowers enable forage to be harvested with precision. For example, when working with butterfly units, unmown areas can be left between the disc mower and the front machine when making sharp turns. Using a combination of a front disc mower and a side disc mower, it is possible to turn as sharply as possible without leaving any unmown areas.
| Tractor power requirment, min/max, kW* | 40-70 |
| Working width, m | 2,4 |
| Number of discs | 6 |
| Adjustable skid shoes | x |
| Mechanical release, automatic return | x |
| Transport width, m | 1,2 |
| Height in transport mode, m | 2,7 |
| Weight, kg | 525 |
| PTO speed, 540 RPM | x |
| Hydraulic coupling, single action | 1 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A side disc mower with impressive features!
The versatile ELHO NK 2800 VC (vertical centre) disc mower meets a wide range of needs.
Vertical centre disc mowers follow the centreline of the tractor when raised for optimal stability in transport mode. HydroBalance suspension enables the cutter bar to follow the field surface precisely without hitting the ground. In the event of an obstacle, the quick release mechanism allows the disc mower to move back and forth. The disc mower then automatically returns to the working position immediately after the obstacle.
ELHO NK 2800 VC:
| Tractor power requirment, min/max, kW* | 50-80 |
| Working width, m | 2,8 |
| Number of discs | 7 |
| Adjustable skid shoes | x |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,2 |
| Height in transport mode, m | 3,2 |
| Weight, kg | 900 |
| PTO speed, 1000 RPM | 0 |
| PTO speed, 540 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Fast mowing and high-quality forage!
The versatile ELHO NK 3300 VC (vertical centre) disc mower meets a wide range of needs.
Vertical centre disc mowers follow the centreline of the tractor when raised for optimal stability in transport mode. HydroBalance suspension enables the cutter bar to follow the field surface precisely without hitting the ground. In the event of an obstacle, the quick release mechanism allows the disc mower to move back and forth. The disc mower then automatically returns to the working position immediately after the obstacle.
The ELHO NK 3300 F and NK 3300 VC together form an excellent combination with a working width of 6.6 metres.
NK 3300 VC:
| Tractor power requirment, min/max, kW* | 60-90 |
| Working width, m | 3,3 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,2 |
| Height in transport mode, m | 3,6 |
| Weight, kg | 980 |
| PTO speed, 1000 RPM | x |
| PTO speed, 540 RPM | 0 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A front disc mower with suspension that produces clean forage!
The ELHO NK 3300 Front features the Pendulum Center System (PCS), which enables the mower conditioner to move backwards, swing and rotate. On headlands, the disc mower follows the driving line. If the cutting unit hits an obstacle, the suspension reduces the force of the impact by 50 percent.
The NK 3300 F closely follows the field surface thanks to PCS and HydroBalance suspension. This light and precise disc mower produces exceptionally clean forage. The NM 3300 F is a good combination with side mounted disc mowers and especially a butterfly combination.
NK 3300 Front:
| Tractor power requirment, min/max, kW* | 60-90 |
| Minimum recommended tractor weight, kg* | 4500 |
| Working width, m | 3,3 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| HydroBalance suspension | x |
| Transport width, m | 3.15 |
| Weight, kg | 800 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1 |
| Hydraulic pressure, min/max bar | 10-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3N |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A butterfly disc mower that does not require a large tractor!
The ELHO NK 9100 is the ideal disc mower for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection.
In transport mode, the centre of gravity is over the tractor’s centreline, so even a smaller tractor remains stable. A butterfly combination with a front mounted disc mower is suitable for tractors with 150 or more horsepower.
Optional endplates make it possible to make swaths directly from the mowing bar.
ELHO NK 9100:
| Tractor power requirment, min/max, kW* | 110-150 *** |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9,1 |
| Number of discs | 16 |
| Adjustable skid shoes | x |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3.2 |
| Height in transport mode, m | 3,8 |
| Weight, kg | 1850** |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, single action | 2 |
| Hydraulic pressure, min/max bar | 150-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Widest butterfly disc mower on the market with SideFlow auger conveyor!
The NK 10700 SF disc mower with SideFlow auger conveyor features an adjustable working width from 9.4 to 10.7 metres, enabling it to be used together with front mounted mowers of different sizes. Both sides can be adjusted individually, either manually or automatically. AutoBalance, i.e. automatic HydroBalance suspension, maintains the optimal position at all times, also in curves.
Automatic Curve Compensation (ACC) uses the machine’s own GPS system to adjust the overlap of the cutter bars in curves to prevent any unmown areas between the front and rear units. The same GPS system is used for the Headland Automatics (HA), which raises the rear disc mowers automatically at the exact same spot where the front units were raised. In this way, the operator can focus on the front unit alone.
The HydroActive hydraulic release device provides impact protection in case of obstacles, while the SideFlow auger conveyor is ideal for harvesting forage plants with stalks. For the ultimate cutting power and highest possible comfort levels, the NK 10700 is the right choice!
ELHO NK 10700 SideFlow:
| Tractor power requirment, min/max, kW* | 160-220 *** |
| Minimum recommended front mower, m | 3,7 |
| Working width, m | 9,6-10,7 |
| Number of discs | 18 |
| Adjustable skid shoes | x |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 4,1 |
| Weight, kg | 3450** |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, double action | 2 |
| Hydraulic pressure, min/max bar | 180-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
A front roller mower conditioner with suspension that produces clean forage!
The ELHO NM 3200 F R (front roller) features the Pendulum Center System (PCS), which enables the mower conditioner to move backwards, swing and rotate. If the cutting unit hits an obstacle, the suspension reduces the force of the impact by 50 percent.
The NM 3200 F R closely follows the field surface thanks to PCS and HydroBalance suspension. This light and precise mower conditioner produces exceptionally clean forage. The NM 3200 F R is a good combination with side mounted mower conditioners and especially a butterfly combination.
ELHO NM 3200 F:
| Tractor power requirment, min/max, kW* | 60-90 |
| Minimum recommended tractor weight, kg* | 5000 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Round forged steel finger | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 1,2-1,8 |
| HydroBalance suspension | x |
| HydroActive releasev | x |
| Transport width, m | 3 |
| Weight, kg | 1100 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1 |
| Hydraulic pressure, min/max bar | 140-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
Tried-and-tested solutions and unsurpassed ease of use!
The ELHO NM 3200 P R (pulled roller) mower conditioner has adjustable auxiliary skid shoes and can be raised high on the headland. The end-cushioned boom cylinder is attached to the centre of the cutting unit.
The standard HydroBalance suspension lightens the cutter bar so that it does not scrape along the ground or cause unnecessary friction. Hydraulic adjustable cutting height is available as an option, allowing the cutting height to be adjusted even while driving.
The bevel gear on the NM 3200 P R model can be turned by the operator. In this way, the mower conditioner can also be used on a tractor with just a 540 rpm PTO instead of a 1000 rpm PTO.
ELHO Arrow 3200 PR:
| Tractor power requirment, min/max, kW* | 60-90 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Polyurethan roller | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 1000 |
| Swath width, m | 1,3-2,5 |
| Spreading | x |
| HydroBalance suspension | x |
| Transport width, m | 3,1 |
| Tyre size | 300/80-15,3 |
| Optional tyre sizev | 380/55-17 |
| Weight, kg | 1970 |
| PTO speed, 1000 RPM | x |
| PTO speed, 750 RPM | 0 |
| Hydraulic coupling, single action | 1+1 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Impressive flow with high driving speeds, also with smaller tractors
ELHO 2400 VC R (vertical centre roller) mower conditioners are known for their impressive flow, high driving speeds and clean forage. The adjustable skid shoes and HydroBalance suspension enable the cutter bar to follow the field surface precisely without hitting the ground. The conditioning rollers are gentle on forage crops, minimising crop losses also when cutting sensitive plants. Vertical centre roller mower conditioners are ideal for use also with smaller tractors on the farm. For example, the NM 2400 VC R can be used with a 75-horsepower tractor weighing 3500 kilos.
Vertical centre roller mower conditioners enable forage to be harvested with precision. For example, when working with butterfly units, unmown areas can be left between the mower conditioner and the front machine when making sharp turns. Using a combination of a front mounted mower conditioner and a side mounted mower conditioner, it is possible to turn as sharply as possible without leaving any unmown areas.
ELHO Roller roller mower conditioners:
| Tractor power requirment, min/max, kW* | 50-80 |
| Working width, m | 2,4 |
| Number of discs | 6 |
| Adjustable skid shoes | x |
| Polyurethan roller | x |
| Rotor width, mm | 1750 |
| Rotor speed, RPM | 920 |
| Swath width, m | 0,6-1,4 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Height in transport mode, m | 2,75 |
| Weight, kg | 1050 |
| PTO speed, 1000 RPM | 0 |
| PTO speed, 750 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
***) front mower Included
X = Standard O = Option - = Not available
Roller mower conditioner for leafy forage!
The ELHO NM 2800 VC R (vertical centre roller) mower conditioner comes with all the key features built in. The cutting unit is suspended from the centre, allowing it to follow the surface lightly, and the extremely reliable cutter bar cuts cleanly.
In transport mode, the cutting unit rotates 120 degrees, keeping the centre of gravity over the tractor’s centreline. This makes it stable to transport even with smaller tractors.
The NM 2800 VC R is a high-quality and fast roller mower conditioner!
ELHO Roller roller mower conditioners:
| Tractor power requirment, min/max, kW* | 60-90 |
| Working width, m | 2,8 |
| Number of discs | 7 |
| Adjustable skid shoes | x |
| Polyurethan roller | x |
| Rotor width, mm | 2150 |
| Rotor speed, RPM | 920 |
| Swath width, m | 0,9-1,8 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Height in transport mode, m | 3,1 |
| Weight, kg | 1150 |
| PTO speed, 1000 RPM | x |
| PTO speed, 5400 RPM | 0 |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 120-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2 |
*) The tractor weight and power is determined based on the conditions
X = Standard O = Option - = Not available
A butterfly roller mower conditioner that does not require a large tractor!
The ELHO NM 9000 R (roller) is the ideal mower conditioner for contractors and large farms. This powerful machine offers optimal weight distribution, excellent usability, HydroBalance suspension and HydroActive impact protection.
The adjustable rollers make it possible to precisely adjust the conditioner to suit the particular plant and climate conditions. The NM 9000 R is especially suitable for cutting leafy forage. In transport mode, the centre of gravity is over the tractor’s centreline, so even a smaller tractor remains stable.
ELHO NM 9000 Delta:
| Tractor power requirment, min/max, kW* | 140-180 |
| Minimum recommended front mower, m | 3,2 |
| Working width, m | 9 |
| Number of discs | 16 |
| Adjustable skid shoes | x |
| Polyurethan roller | x |
| Rotor width, mm | 2x2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 2x1,3-2,1 **) |
| HydroBalance suspension | x |
| HydroActive release | x |
| Transport width, m | 3 |
| Height in transport mode, m | 3,7 |
| Weight, kg | 2750 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, single action | 2 |
| Hydraulic pressure, min/max bar | 140-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
X = Standard O = Option - = Not available
A vertical centre roller mower conditioner with impressive features!
The versatile ELHO NM 3200 VC R vertical centre roller mower conditioner meets a wide range of needs. The adjustable polyurethane rollers ensure gentle conditioning of the crops.
HydroBalance suspension is standard on the large NM 3200 VC R features. In transport mode, the cutting unit is vertical.
The NM 3200 VC R is a high-quality and efficient mower conditioner!
ELHO Roller roller mower conditioners:
| Tractor power requirment, min/max, kW* | 80-110 |
| Minimum recommended front mower, m | 5000 |
| Working width, m | 3,2 |
| Number of discs | 8 |
| Adjustable skid shoes | x |
| Polyurethan roller | x |
| Rotor width, mm | 2500 |
| Rotor speed, RPM | 920 |
| Swath width, m | 1,3-2,1 |
| HydroBalance suspension | x |
| Mechanical release, automatic return | x |
| Transport width, m | 2,5 |
| Height in transport mode, m | 3,7 |
| Weight, kg | 1250 |
| PTO speed, 1000 RPM | x |
| Hydraulic coupling, double action | 1 |
| Hydraulic pressure, min/max bar | 160-210 |
| PTO connection 1 3/8"-Z6 | x |
| 3 point linkage | Cat.2/3 |
*) The tractor weight and power is determined based on the conditions
**) front mower not included
X = Standard O = Option - = Not available
Superior Performance
Our harvesting machines are built to deliver exceptional performance, ensuring efficient and precise harvesting of your crops. Experience increased productivity and optimised yields with our reliable machinery.
Versatility and Adaptability
We recognise that every farm has unique requirements. Our range of agricultural harvesting machines offers versatility and adaptability to handle various crops, field conditions, and harvesting methods. From grain harvesters to forage harvesters, we have the right equipment to meet your specific needs.
Durability and Reliability
Invest in machinery that stands the test of time. Our agricultural harvesting machines are constructed with robust materials and built to withstand demanding harvesting conditions. Count on their durability and reliability to keep your operations running smoothly.
Advanced Features and Technology
Stay ahead of the curve with our advanced features and cutting-edge technology. From automated controls to precision harvesting systems, our machines are equipped with innovations that enhance efficiency and ease of use.
We Are Here to Help!
We are committed to providing exceptional customer support. Our team of experts is available to assist you in selecting the right harvesting machines, answering your questions, and providing guidance throughout your buying journey. We are here to ensure your satisfaction and success.
Browse our comprehensive range of agricultural harvesting machines for sale in NZ and find the perfect equipment to optimise your harvests. Trust in our quality, performance, and commitment to excellence.
Contact us now to discuss your requirements and get expert guidance:
